Paint Mixing Machines

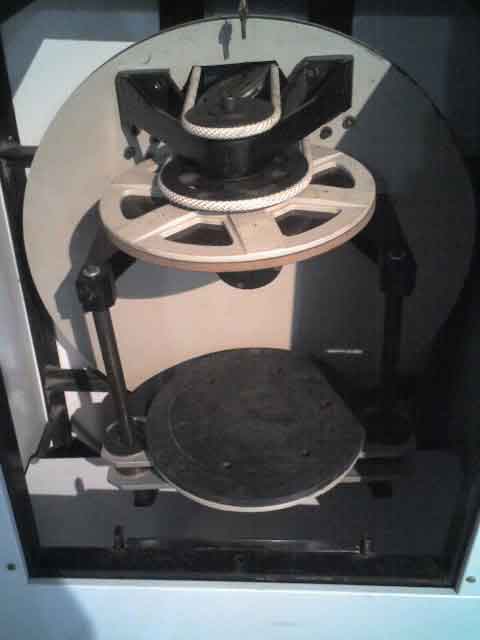

Gyroshakar – GYRO 202 / 11


  Specifications Gyro 202 Gyro 11
  Height 1200 mm 430 mm
  Depth 625 mm 210 mm
  Width 850 mm 310 mm
  Weight 100 kg. approx. 10 kg. approx.
  Motor 1 HP single phase 0.25 HP single phase
  Capacity 1 liter Tin to 20 liter Drum 1 liter Tin only
  Type Gyroscopic mixing action

Operation

• Plug in the machine after proper leveling.
• open the door and place the tin / drum in the grooves
• provided on the bottom rubber pad / adapter.
• press the clamp top handle & move the clamp
• downward till the top rubber pad touches tin / drum.
• tighten the safety screws provided on both ends of the clamps.
• use lever to further clamp the tin/drum for full tightening rotate the levers from extreme right to extrem left & lock it.
• close the door.
• switch on the machine switch (mcb).
• set the desired mixing time.
• the machine will stop after completing the mixing of materials for the set time.
• open the door.
• release the safety screws, also turn the clamp lever.
• press the clamp top handle and move the clamp upward.
• unload the tin / drum.
