Liquid Painting & Coating Sytems

Material used - paint, lacquer, oil, varnish, wax etc.

Painting Systems

1. Spray painting system

2. Dip painting system

Spray-painting system

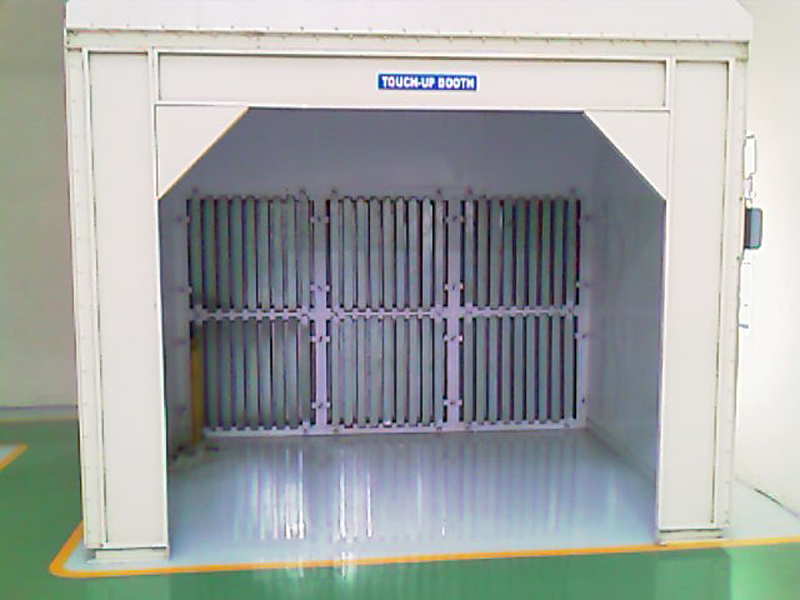

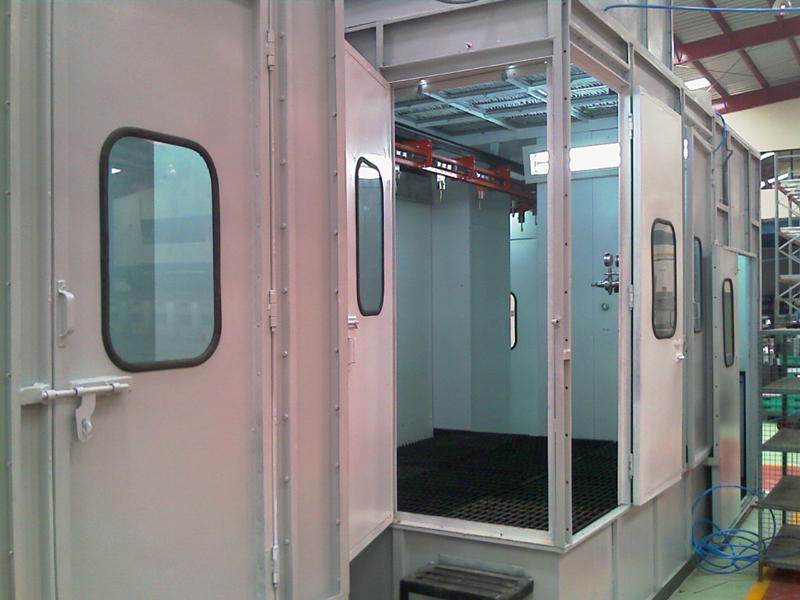

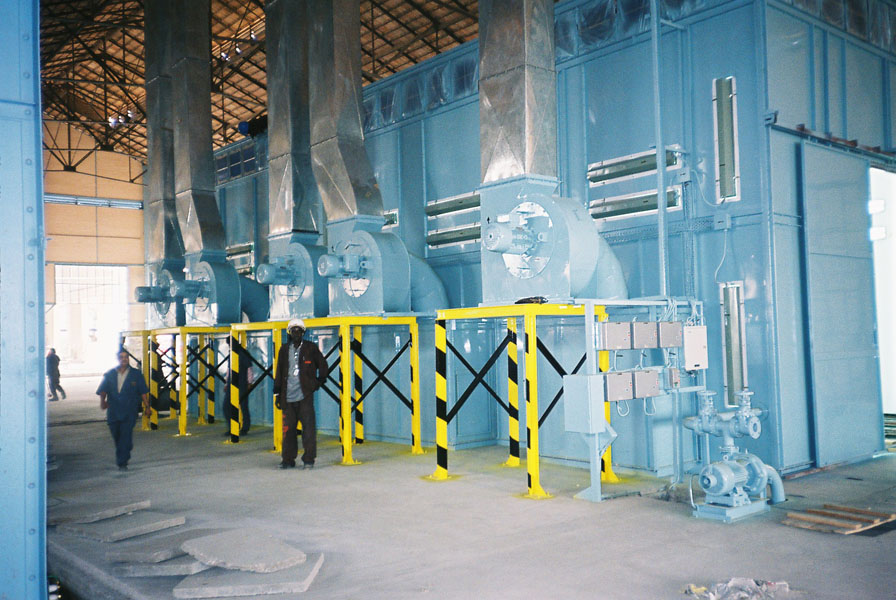

Side draught / Down draught / touchup

Dry back - Metallic Filters + Paint Arrestor Filters

Water wash
Non dust proof (standard - Top Closed & Front Open)
Dust proof non-pressurized
Dust proof pressurized

Dip Painting System

Dipping can be carried out by:

1. Conveyor
2. Transporter
3. Hoist
4. Reciprocating Dip tanks

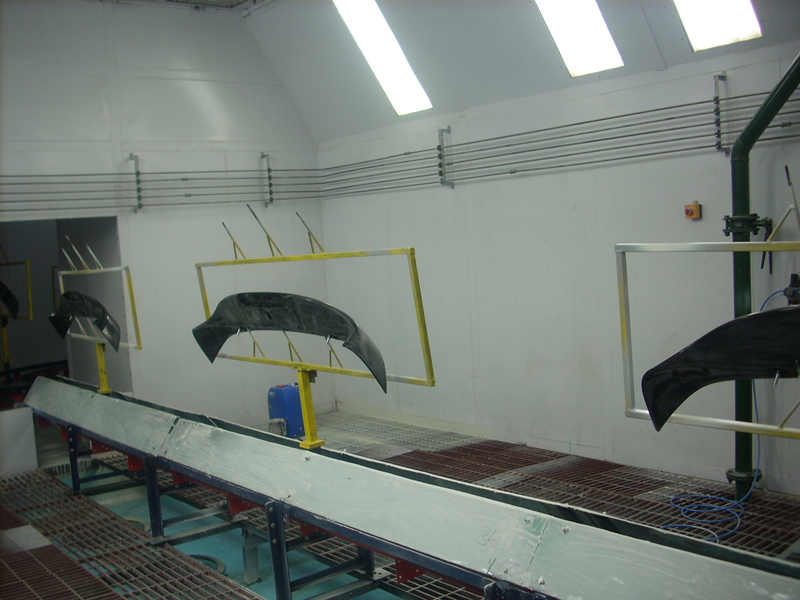

Paint Booth Paint Booth
Paint Booth Paint Booth


Pre-Treatment Process

Baking Oven

Liquid Painting & Coating System

Powder Coating System

Paint Mixing Machines

Material Handling

Dust Collection Systems

Fume Extraction Systems

Fresh Air Supply Unit

Shower Testing System
